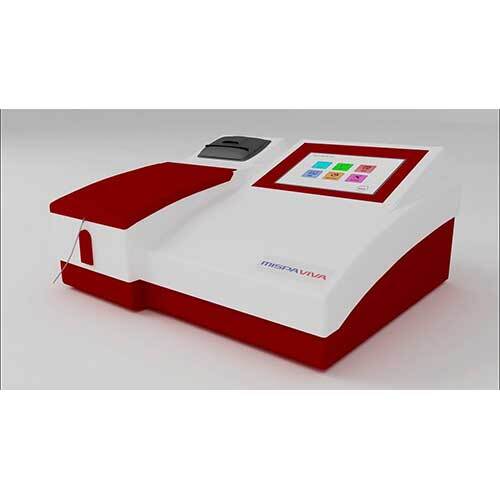

Agappe Semi Auto Bio Chemistry Instrument

Send Inquiry

Request To Call Back

Agappe Semi Auto Bio Chemistry Instrument

Name: Agappe Semi Auto Bio Chemistry Instrument
Brand: Infinity Diagnochem

Get a Price/Quote

MOQ : 10 Packs

Agappe Semi Auto Bio Chemistry Instrument Specification

Phase
Single Phase

Height
170 mm

Storage Capacity
Up to 200 test results

Suitable For
Routine Biochemistry Testing

Automation Grade
Semi Automatic

Dimension (L*W*H)
420 x 310 x 170 mm

Power
35 W

Properties
User-friendly interface, High reliability, Consistent results

Frequency
50/60 Hz

Use
For performing biochemical analysis of blood and other biological fluids

Shape
Rectangular

Material
ABS Plastic and Metal

Humidity Range
20% - 90% RH (Non-condensing)

Color Code
White / Blue

Application
Clinical Laboratory, Hospital, Diagnostics Center

Weight
Approx. 6.5 kg

Display Type
Graphical LCD

Treatment Type
Serum, Plasma, Urine, CSF sample analysis

Temperature Range
10C to 30C operating

Accuracy
High Accuracy (CV < 1%)

Product Type
Semi Auto Bio Chemistry Analyzer

Function
Automatic Calculation, Data storage, Direct printing

Display
Large LCD Display

Power Source
Electric

Voltage
220 V AC

Light Source
Halogen Lamp

Data Output
USB / RS232 Interface

Calibration Mode
Factor, standard, multiple point

Wavelength Range
340 nm to 700 nm

Number of Filters
6 position filter wheel

Printer Interface
Inbuilt Thermal Printer / External printer support

Sample Throughput
Approximately 120 tests per hour

Measurement Method
End point, Kinetic, Fixed time, Absorbance

Memory Backup
Yes, with battery protection

Reaction Volume
500 l 3000 l

Cuvette Type
Flow cell and cuvette modes both supported

Agappe Semi Auto Bio Chemistry Instrument Trade Information

Minimum Order Quantity
10 Packs

Supply Ability
1000 Packs Per Week

Delivery Time
3-4 Days

Main Domestic Market
All India

About Agappe Semi Auto Bio Chemistry Instrument

The offered Agappe Semi-auto Bio Chemistry Instrument is not only a normal photometer but it is a true semi-automatic device that is capable of carrying out drug-enzyme investigation, routine biochemistry, therapeutic drugs, hormonal assay and electrolytes. We make high-quality, advanced and cost-effective devices at very reasonable prices. This is a semi-automatic, simple, compact and reliable system capable of doing tests on urine, whole blood, plasma, serum and cerebrospinal fluid as samples. The simple user amiable step-by-step details are provided in this Agappe Semi Auto Bio Chemistry Instrument to guarantee uniform results on which customers can rely.

Enhanced Accuracy and Reliability

Engineered for dependable performance, this instrument assures high accuracy (CV<1%) and consistency in biochemical analysis. Equipped with a halogen lamp and six-position filter wheel, it allows precise wavelength selection between 340 nm and 700 nm for diverse assays, delivering clinically reliable results across a spectrum of biological samples.

Flexible Operations for Versatile Workflow

The Agappe instrument supports both flow cell and cuvette measurements, easily adapting to routine and specialized analyses in various healthcare settings. The adjustable reaction volume (500 l - 3000 l) provides customization for different protocols, while its automation grade simplifies handling, making the device suitable for laboratories with moderate to high throughput.

Comprehensive Data Management

With an inbuilt data storage capacity for up to 200 test results, USB/RS232 output interfaces, and integrated thermal printer or external printer support, managing, retrieving, and sharing results is straightforward. Battery-protected memory backup ensures data security even during power interruptions, enhancing overall laboratory efficiency and traceability.

FAQ's of Agappe Semi Auto Bio Chemistry Instrument:

Q: How does the Agappe Semi Auto Bio Chemistry Instrument ensure accurate test results?

A: The instrument utilizes a high-precision optical system with a six-position filter wheel (340 nm to 700 nm range) and halogen lamp to optimize absorbance measurement. High accuracy (CV < 1%) is maintained through reliable calibration modes (factor, standard, multiple point), ensuring each test meets stringent quality standards.

Q: What types of samples and tests can this analyzer process in a clinical setting?

A: The device is suitable for analyzing serum, plasma, urine, and cerebrospinal fluid (CSF), accommodating a wide space of biochemical assays. Its flexible measurement methods-end point, kinetic, fixed time, and absorbance-make it ideal for the routine analysis required in hospitals and diagnostic laboratories.

Q: When is the use of flow cell versus cuvette mode recommended?

A: Flow cell mode is typically preferred for high-throughput continuous sample processing, enhancing workflow efficiency. Cuvette mode offers flexibility for specialized or lower-volume testing. The instrument allows seamless switching between these modes depending on laboratory demand and the nature of the analysis.

Q: Where can data and test results be stored or exported from the instrument?

A: Results can be stored directly in the instrument's internal memory, which holds up to 200 test results. For external data management, the analyzer supports USB and RS232 interfaces, facilitating easy export and integration with laboratory information systems, plus direct reporting through built-in or external printers.

Q: What benefits does the user-friendly interface provide to laboratory staff?

A: The large graphical LCD and intuitive controls streamline the testing process, reducing training time and minimizing operational errors. Automated calculation and direct printing further accelerate workflow, making it easier for technicians to manage high test volumes efficiently.

Q: How does the instrument maintain data integrity in case of power interruptions?

A: It features memory backup with battery protection, safeguarding stored data and test results against unexpected power loss, thus ensuring uninterrupted laboratory operations and reliable patient reporting.

Q: Who is this instrument best suited for in the Indian healthcare market?

A: The Agappe Semi Auto Bio Chemistry Instrument is ideal for dealers, manufacturers, suppliers, and healthcare facilities-including hospitals, clinics, and diagnostics centers-seeking robust, semi-automated solutions for routine biochemistry testing across the country.
